Engineering Precision.
In SUPERTECH ENGINEERING we design high-performance industrial components for the most demanding production lines. We serve high-output sectors including flexible packaging, textile processing, commercial printing, lamination, and advanced converting industries.

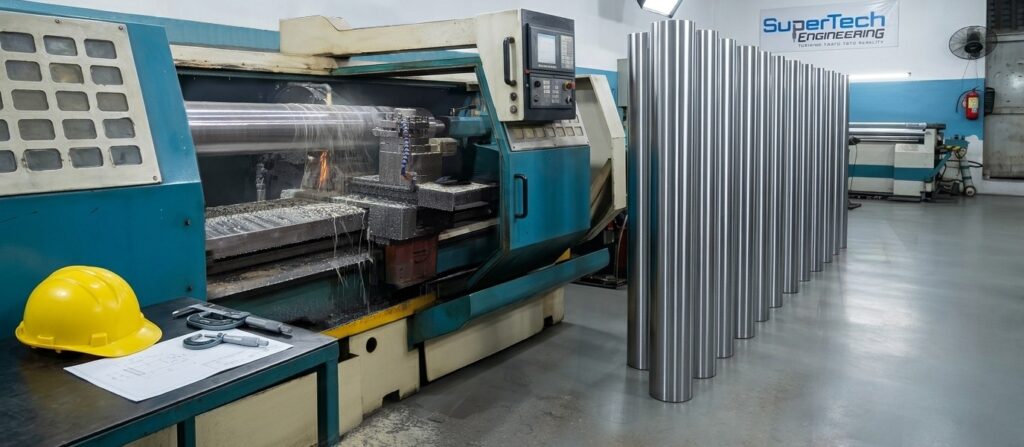

Our engineering facility integrates advanced CNC machining, precision grinding, and rigorous quality control protocols. We manufacture dynamically balanced, ultra-precise mechanical parts engineered to withstand high operational speeds, extreme rotational stresses, and severe torque forces. From large-scale production runs to OEM-grade reverse engineering of imported machinery components, we deliver structural reliability that eliminates unscheduled downtime and maximizes plant profitability.
Core Product Portfolio
- Printing & Lamination Cylinders: Shafted rotogravure bases, hollow shaftless shells, and pneumatic sleeves for quick changeover.
- Aluminum Rollers: Low-inertia guide rollers, including grooved options for web tension control and wear-resistant hard anodizing.
- Transmission Shafts: High-precision drive shafts with micron-level tolerances for gearboxes and printing systems.
- Taper Cones & Docks: Secure locking systems for hollow cylinders.
Technical Capabilities & Services
- Large-Scale Machining: Advanced CNC turning and grinding capable of manufacturing components up to 2200 mm in length and 1500 mm in circumference.
- Material Versatility: Production options utilizing high-grade steel alloys, carbon steel, stainless steel, and lightweight precision aluminum.
- Dynamic Balancing: Specialized balancing services for all high-speed shafts and rollers to protect your machine bearings and extend equipment life.
- Reverse Engineering: Complete fabrication capabilities from physical samples, worn components, technical drawings, or engineering blueprints.
- Component Refurbishing: Comprehensive reconditioning, grinding, and shaft repair services to restore your existing industrial rollers to OEM specifications.
Global OEM & Machine Compatibility
We produce aftermarket replacement cylinders, transmission shafts, and locking docks designed to match or exceed tolerances for leading brands like Bobst, Windmöller & Hölscher (W&H), Daetwyler, Comexi, and Stork/Zimmer.

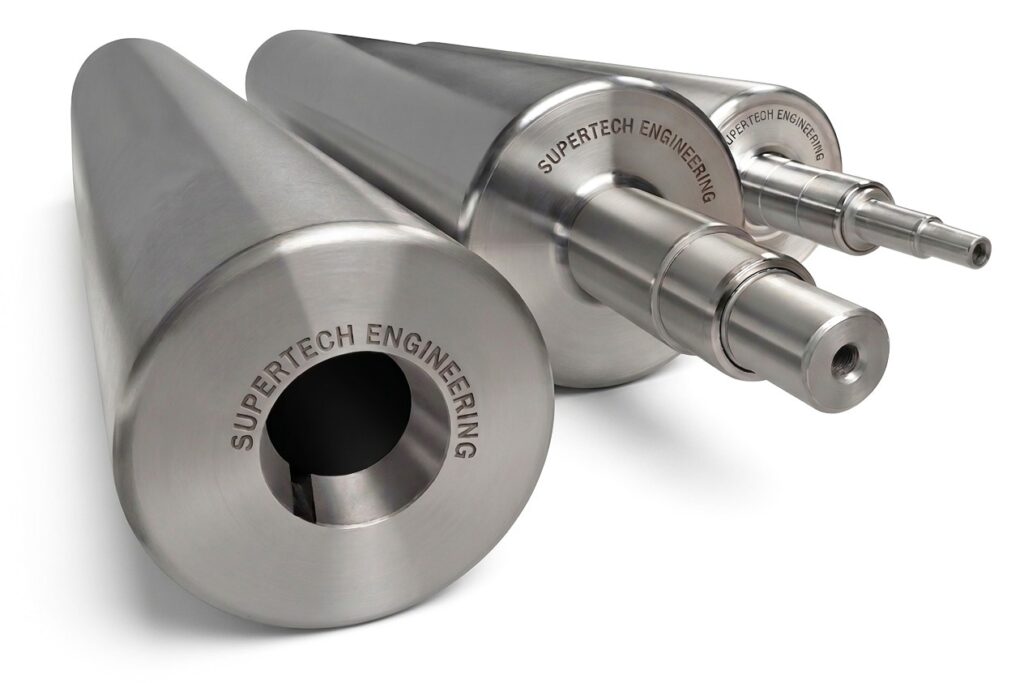

SUPERTECH ENGINEERING | Rotogravure Base Shell Cylinders & Sleeves
Our High-Precision Printing Bases for Flawless Registration
SuperTech Engineering manufactures high-performance Rotogravure Base Shell Cylinders and Sleeves designed for the demanding requirements of modern high-speed printing presses. Engineered to deliver absolute concentricity and exceptional durability, our printing bases ensure uniform ink transfer, eliminate registration errors, and maximize your press uptime.
Whether you run a high-volume flexible packaging line or a fast-paced short-run label facility, we machine components that meet strict global standards right here in Karachi.
Product Configurations
1. Shafted Rotogravure Base Shells
- Integrated Rigid Construction: Built with permanently fitted, precision-ground steel journals (shafts) to support maximum mechanical load.
- Zero Deflection: Heavy-wall engineering prevents bending or flexing under high impression roller pressures, ensuring uniform print density across the entire web width.
- Best For: Wide-web packaging presses, long-run wallpaper or laminate manufacturing, and heavy-duty industrial coatings.

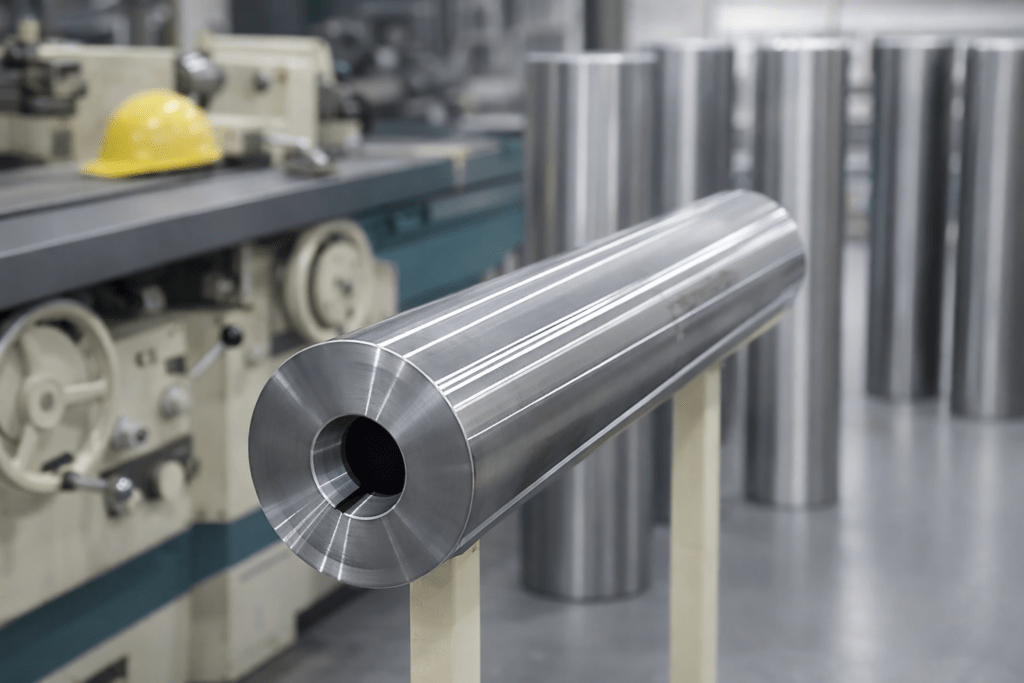

2. Hollow (Shaftless) Base Shells
- Precision Bored Ends: Machined with exact internal tapered bores and keyway slots designed to mount securely onto your press’s expanding mandrels or docks.
- Efficient Handling & Storage: Significantly lighter than shafted alternatives, reducing operator fatigue during changeovers and saving valuable storage space.
- Best For: Modern mid-to-wide web flexible packaging lines with quick-docking mechanical configurations.

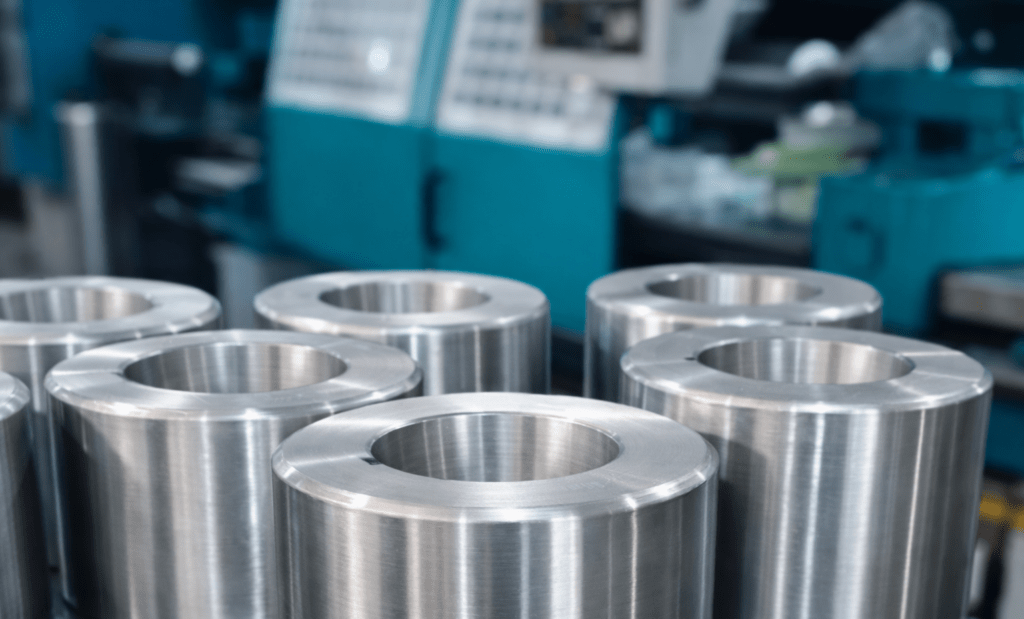

3. Rotogravure Printing Sleeves
- Pneumatic Air-Fit Design: Engineered to expand and slide effortlessly onto pneumatic mandrels using compressed air, reducing job setup times to minutes.
- Concentric Interference Fit: Built with strict inner-diameter tolerances to ensure the sleeve locks rigidly in place without slipping at high rotational speeds.Best For: Short-run printing jobs, rapid design changeovers, and high-speed narrow-web label applications.
Technical Specifications & Engineering Standards
Our state-of-the-art CNC machine shop guarantees that every cylinder and sleeve leaves our facility ready for immediate copper plating and engraving:
- Maximum Machine Length: Custom fabrication up to 2000 mm in length.
- Circumference Capabilities: Machined precisely up to 1500 mm in circumference.

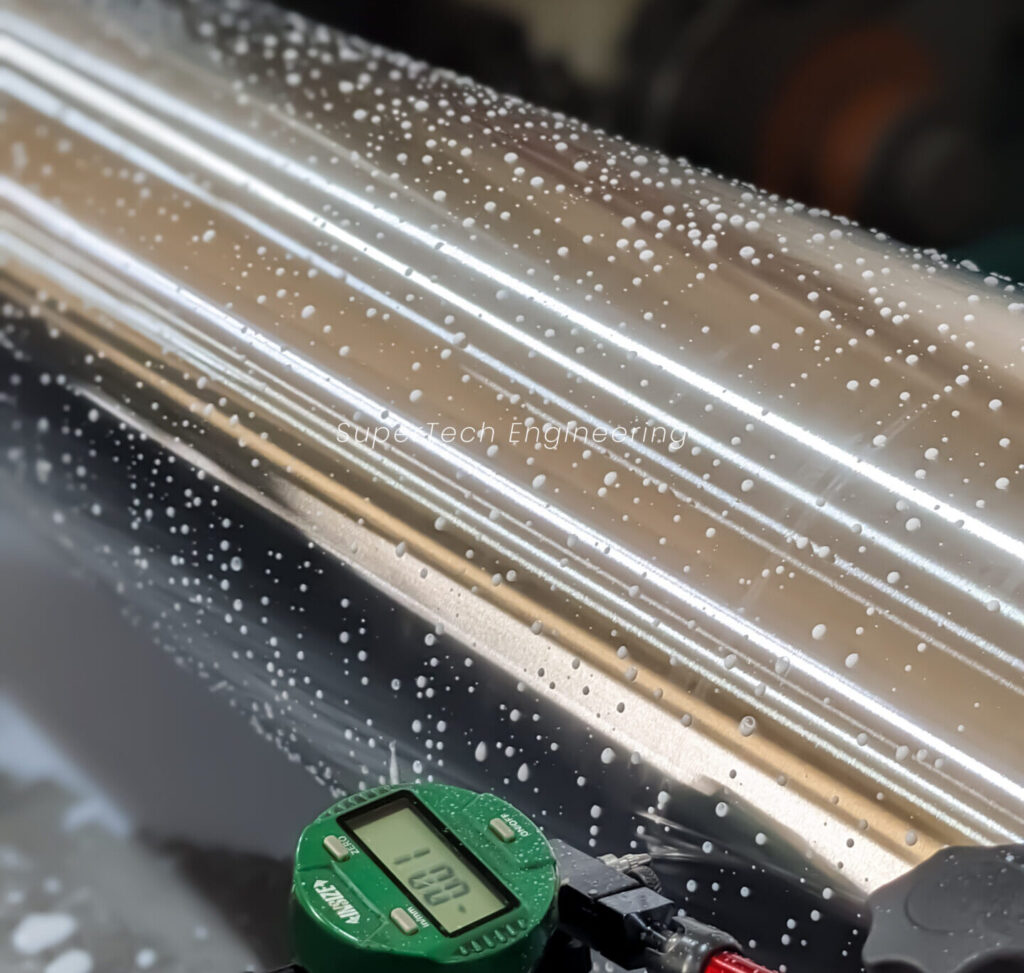

- Geometric Precision: Total Indicator Runout (TIR) and concentricity maintained within strict micron limits to completely eliminate ghosting and color shifting.
- Base Materials: Sourced from high-density, seamless steel piping and high-tensile alloys to resist structural fatigue under continuous operating pressure.
- Surface Finish: Micro-ground and polished to a flawless mirror finish, ensuring optimal copper adhesion during the plating process.
The SuperTech Engineering Advantage
- Dynamic Balancing: Every cylinder and sleeve is dynamically balanced at high RPMs to prevent mechanical vibrations, preserving your press bearings and extending machinery life.
- OEM-Grade Reverse Engineering: Can’t find replacement parts for European or Asian imported machinery? We reverse-engineer exact replacements using your worn parts, blueprints, or physical samples.
- Fast Local Turnaround: Based in Karachi, we bypass international shipping bottlenecks and customs delays, offering reliable nationwide delivery and direct engineering support.

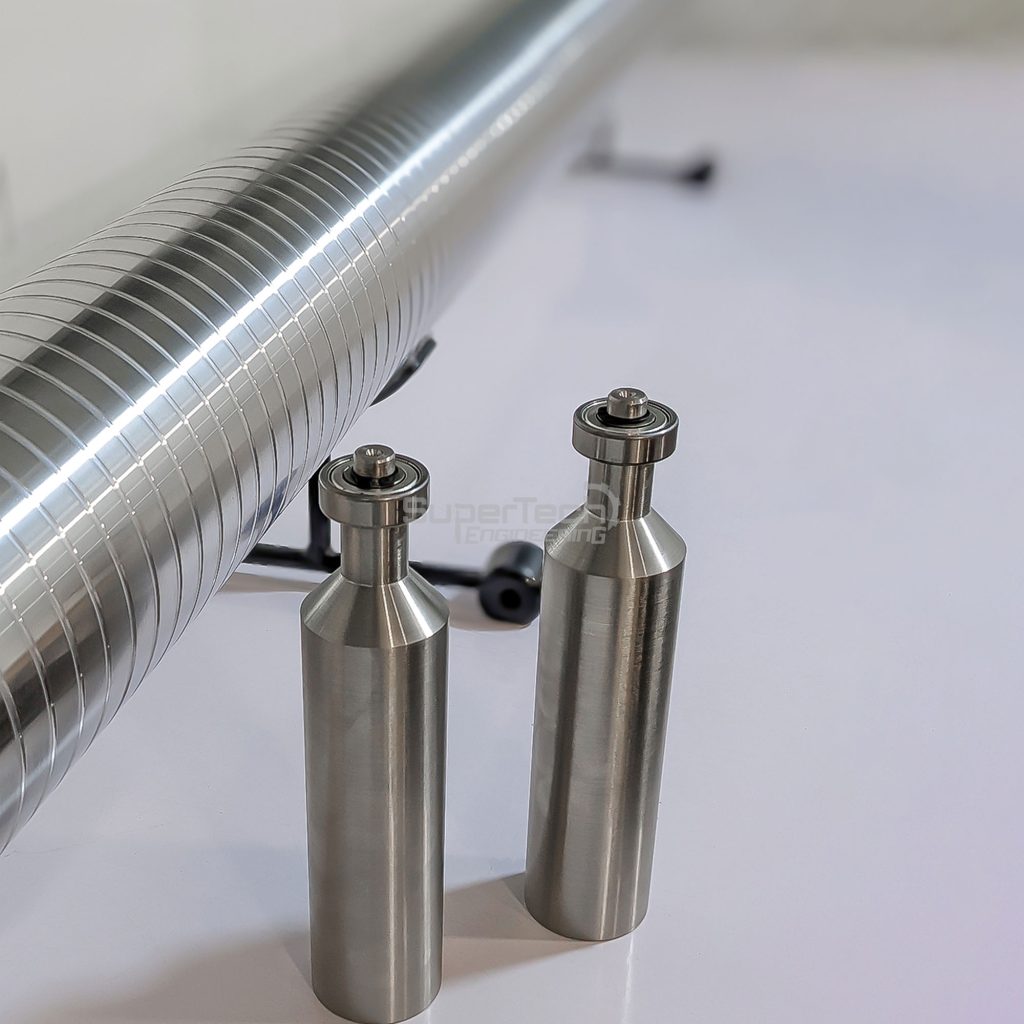

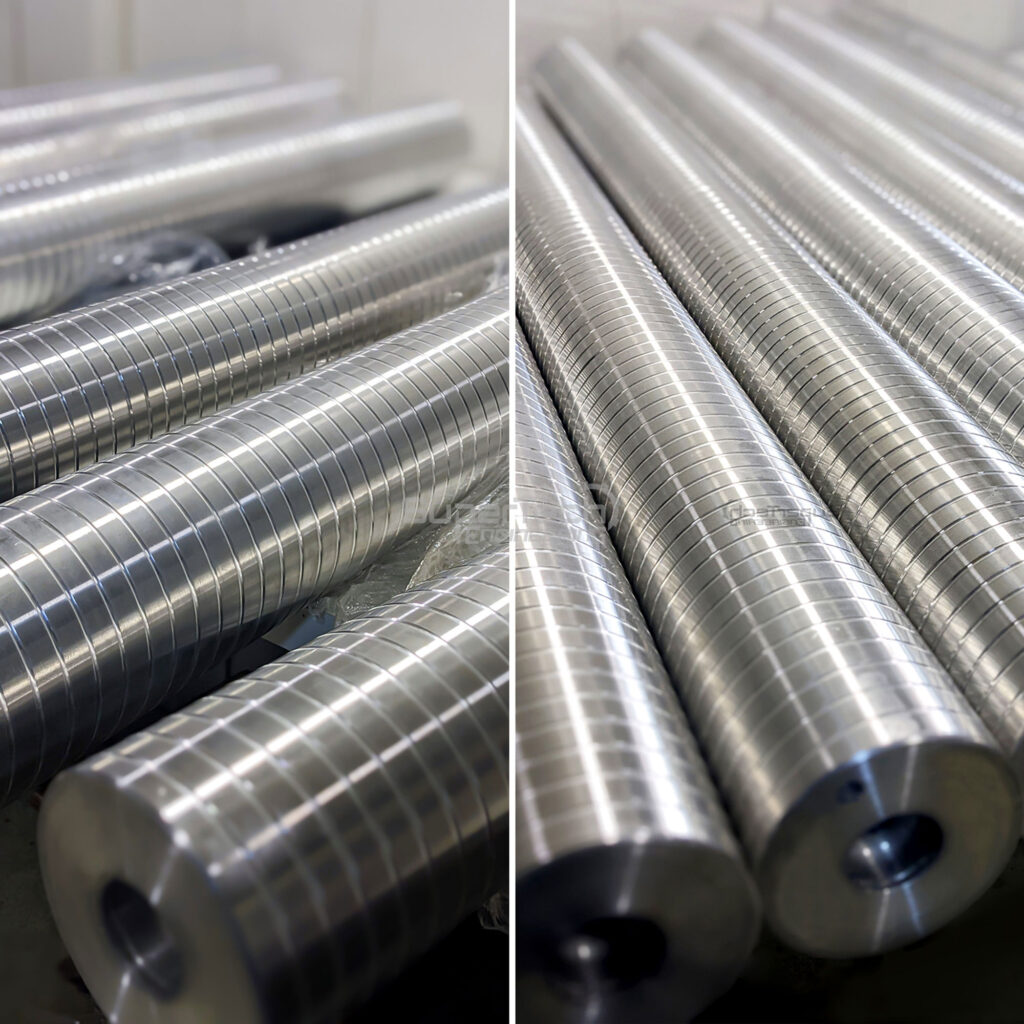

SUPERTECH ENGINEERING | Aluminum Grooved Rollers
Our Aluminum Grooved Rollers are engineered for low-inertia, high-speed web handling across various manufacturing, packaging, and converting lines. By combining lightweight construction with custom surface profiling, these rollers optimize material tracking and eliminate common production defects.
Key Functions & Benefits
- Wrinkle Elimination: Specially engineered groove profiles gently spread the web outward, removing wrinkles and creases from flexible materials.
- Air Traction Control: Grooves prevent air entrapment between the material and the roller surface, eliminating slippage and maintaining traction at high operating speeds.
- Low Inertia: Lightweight aluminum construction ensures minimal rotational resistance, reducing web drag, material stretching, and machine wear during startups and stops.
- Corrosion Resistance: High-grade aluminum alloys offer excellent resistance to moisture, chemicals, and environmental wear.
Technical Specifications & Customization
- Groove Patterns: Available in spiral, chevron (herringbone), straight, or custom cross-hatched configurations based on your material type.
- Shaft Integration: Fitted with durable, precision-ground Stainless Steel (SS) shafts to handle continuous mechanical loads.
- Surface Finishes: Options include standard smooth machining, hard anodizing for enhanced wear resistance, or specialized anti-stick coatings.
- Dimension Limits: Precision CNC turned and dynamically balanced up to 2200 mm in length to prevent any high-speed vibration.
Applications
- Flexible Packaging & Film Converting
- Paper, Foil, and Label Processing
- High-Speed Printing & Slitting Machinery
- Industrial Laminating & Coating Lines

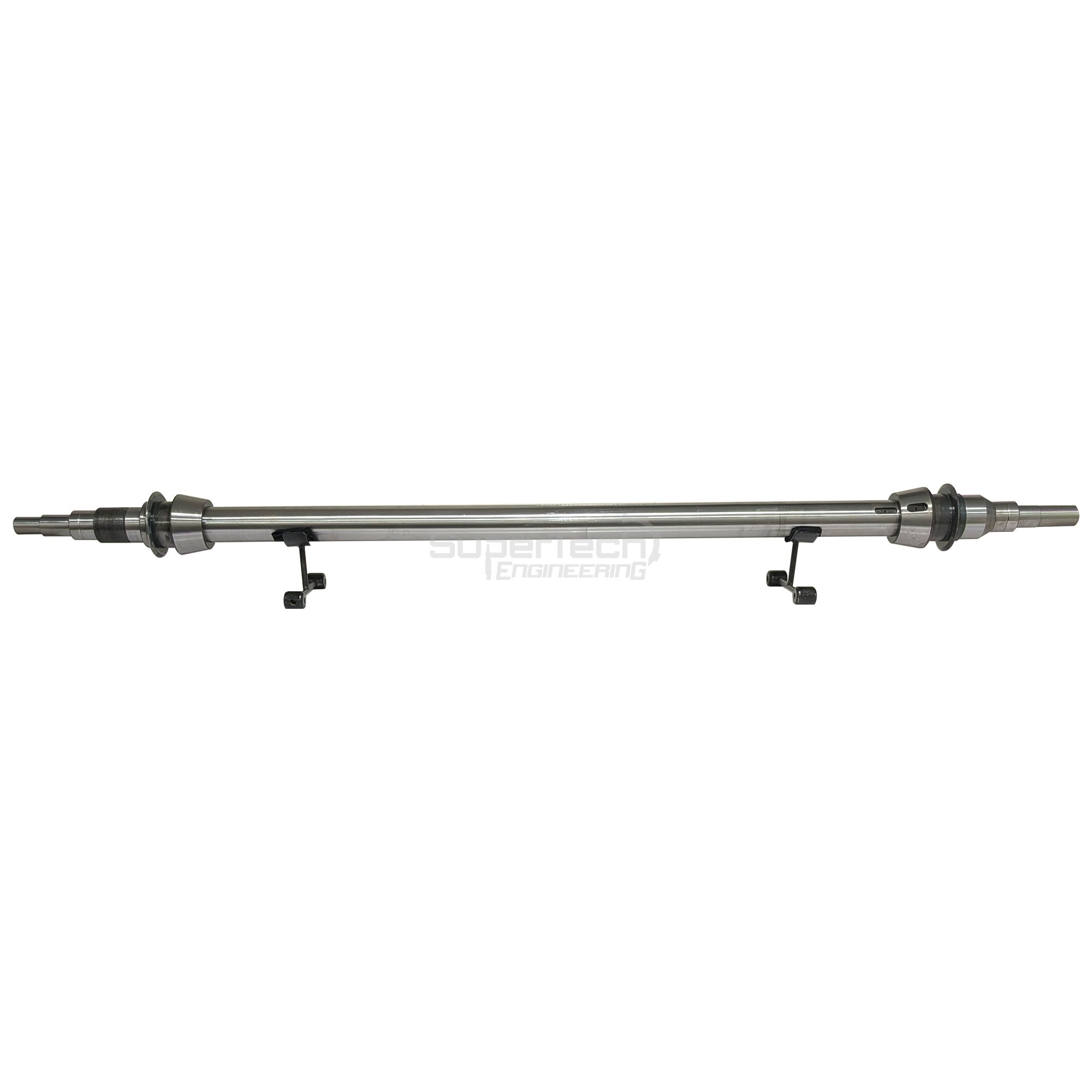

SUPERTECH ENGINEERING | High-Speed Printing Shafts
Precision Alignment for Vibration-Free, High-Speed Performance.
SUPERTECH ENGINEERING manufactures high-precision Printing Shafts engineered to handle the rigorous demands of modern rotogravure, flexographic, and offset printing presses.
Operating at high speeds requires absolute straightness and impeccable balance. Our printing shafts are built with microscopic tolerances to eliminate mechanical vibrations, maintain perfect color registration, and prevent costly material waste.
Whether you operate imported European, Asian, or custom-built local printing machinery, we deliver OEM-grade replacement and custom shafts engineered right here in Karachi.
Technical Specifications & Customization Options
Every printing shaft is custom-machined from premium materials to match your exact press configurations:
- Material Grades: Fabricated from high-tensile carbon steel, stainless steel (SS304/SS316), or specialized alloy steels (such as EN8, EN19, or EN24) to resist bending and torsional fatigue.
- Dimensional Limits: Precision-turned and ground up to 2000 mm in total length.
- Micron-Level Tolerances: Diameters, bearing seats, and journal journals are ground with strict dimensional accuracy to ensure a flawless press-fit with bearings and gears.
- Surface Hardening: Optional induction hardening, case hardening, or nitriding treatments to maximize wear resistance on high-friction contact zones and keyways.
- Machined Features: Custom-milled keyways, splines, steps, snap-ring grooves, and threaded ends built exactly to your technical drawings.
Core Features & Benefits
- Flawless Color Registration: By eliminating radial runout and axial play, our shafts ensure your printing cylinders maintain consistent contact, resulting in sharp, perfectly aligned multi-color prints.
- Vibration Elimination: Every shaft undergoes strict dynamic balancing. This eliminates high-speed harmonics that cause “chatter marks” or ghosting on printed films and paper.
- Bearing Protection: Perfectly straight, balanced shafts distribute loads evenly, preventing premature wear on expensive machine bearings and reducing overall maintenance costs.
- High Torsional Strength: Engineered to handle sudden torque shifts during machine startup, acceleration, and emergency braking without twisting or breaking.
Applications
Our high-speed printing shafts are built for a wide range of web-fed and sheet-fed machinery:
- Rotogravure Printing Presses (Drive and Idle positions)
- Flexographic (Flexo) Printing Lines
- Slitter-Rewinders and Winding/Unwinding Stations
- Industrial Coating and Laminating Machinery
SUPERTECH ENGINEERING | Taper Cones & Dock Assemblies
Secure Cylinder Locking for High-Speed, Zero-Deflection Operations
SuperTech Engineering manufactures high-precision Taper Cones and Dock Assemblies designed to secure hollow or shaftless cylinders firmly onto your machinery’s expanding mandrels. The custom-machined taper cone shown above features an integrated internal keyway and heavy-duty locking elements. These features provide absolute concentric alignment and eliminate radial or axial runout during high-speed rotation.
Technical Specifications & Engineering Standards
Every taper cone and locking dock component is fabricated to meet strict mechanical tolerances:
- Premium Material Construction: Sourced from high-grade, carbon-stabilized steel or alloy steels (such as EN19 or EN24) to handle high clamping forces.
- Precision Keyway & Bore Milling: Features internal keyways precision-slotted to match drive mandrels, preventing slipping or rotational lag under high torque.
- Geometric Uniformity: Machined with an exact taper angle to distribute pressure evenly inside the hollow cylinder base, preventing damage to internal cylinder bores.
- Integrated Locking Components: Outfitted with robust recessed hex-bolt locking blocks to secure the assembly tightly in position during active production cycles.
Core Operational Benefits
- Vibration Reduction: Precise concentric alignment stops cylinder wobbling, protecting expensive machine bearings and reducing structural vibrations.
- Consistent Substrate Control: Eliminates alignment shifting to ensure steady tension control and uniform material tracking across films, papers, and foils.
- Wear and Tear Resistance: Case-hardened contact surfaces withstand frequent loading, unloading, and cleaning routines without losing dimensional accuracy.
Applications
Our taper cones and mechanical docks are optimized for shaftless unwinding and rewinding setups:
- Rotogravure Printing Presses (Cylinder Docking Stations)
- High-Speed Slitter-Rewinders and Foil Slitting Systems
- Industrial Lamination and Coating Equipment
- Heavy-Duty Core-Holding and Web-Converting Mandrels

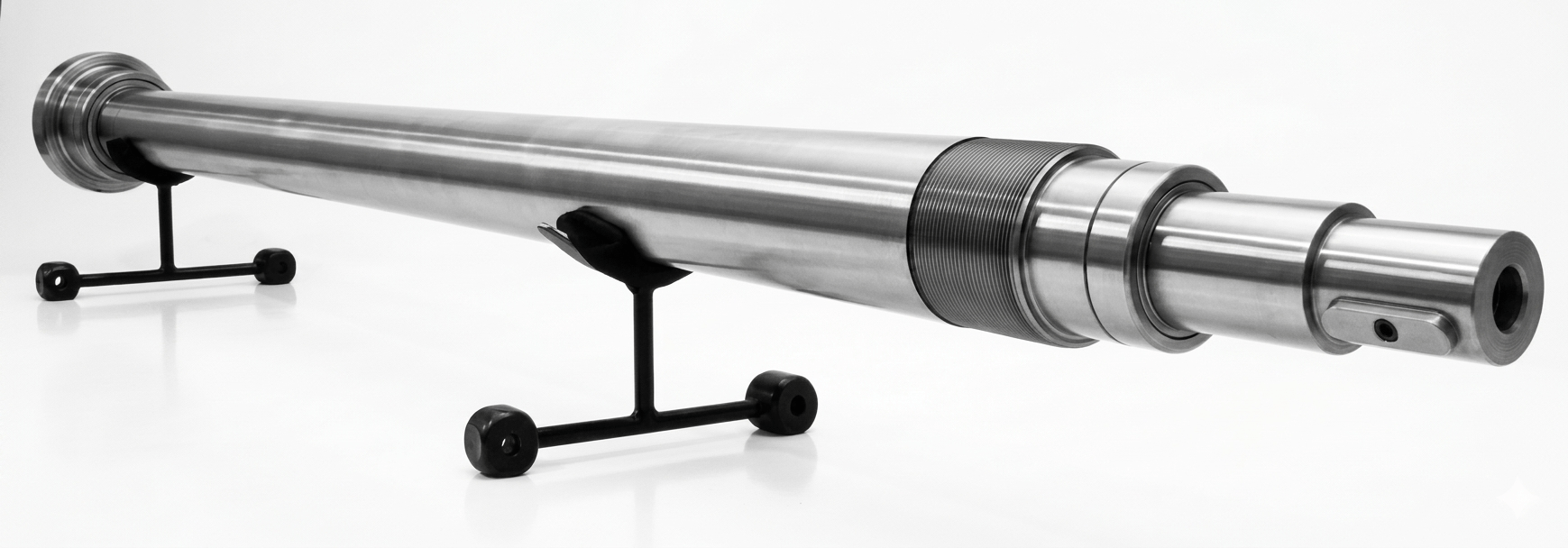

SUPERTECH ENGINEERING | Precise Transmission Shafts
Precision Alignment for Vibration-Free, High-Speed Performance.
Micron-Level Tolerance Controls for Smooth Torque Delivery
SuperTech Engineering manufactures high-precision Precise Transmission Shafts built to eliminate rotational runout and handle the most demanding mechanical drive systems. Standard transmission shafts can flex or twist under sudden load spikes. Our precise transmission shafts are engineered with microscopic tolerance levels. This ensures absolute straightness, zero backlash, and perfect concentricity.
Whether you operate high-output printing presses, complex multi-process Combi lines, or heavy industrial gearboxes, we provide OEM-grade precision right here in Karachi.
Technical Specifications & Geometric Tolerances
Our advanced CNC machine shop utilizes precision turning and automated cylindrical grinding to achieve strict manufacturing parameters:
- Premium Metallurgical Alloys: Forged from premium high-tensile steels (EN19, EN24, or Stainless Steel SS316) to guarantee superior shear strength and structural fatigue resistance.
- Micron-Level Sizing: Bearing seats, gear journals, and step-downs are ground to strict dimensional tolerances (within ±0.005mm) to ensure an exact press-fit with industrial bearings and couplings.
- Geometric Accuracy: Total Indicator Runout (TIR) and shaft straightness are maintained at near-zero parameters across the entire length of the component to completely eliminate wobble.
- Custom Drive Profiles: Precision-milled keyways, splines, and threads cut to strict alignment standards to ensure secure torque transfer without any mechanical play.
- Surface Conditioning: Optional induction hardening or case hardening (up to 58-62 HRC) applied directly to high-friction wear surfaces while preserving a flexible, shock-resistant inner core.
- Length Capacities: Custom engineered up to 2000 mm in total length.
Critical Performance Benefits
- Vibration Elimination: Every shaft undergoes strict dynamic balancing at operating RPMs to remove high-frequency harmonics, shielding expensive gearboxes and machine frames from structural stress.
- Synchronized Equipment Timing: Exceptional torsional rigidity prevents the shaft from twisting or lagging during high-speed acceleration, keeping multi-stage processes perfectly synchronized.
- Extended Component Lifespan: Uniform load distribution prevents bearing migration, shaft scoring, and uneven gear tooth wear, drastically reducing your facility’s maintenance overhead.
Industrial Applications
Our precise transmission shafts serve as primary drive components across a variety of demanding fields:
- High-Speed Printing & Converting Lines (Rotogravure, Flexo, Slitters)
- Combi Laminating & Coating Systems (Drive Gearboxes)
- Automated Material Handling & Industrial Conveyor Drive Assemblies
- Heavy-Duty Industrial Pumps, Blenders, and Power Transmission Hubs
